Attaches Steel Bar Grating to Structural Shapes

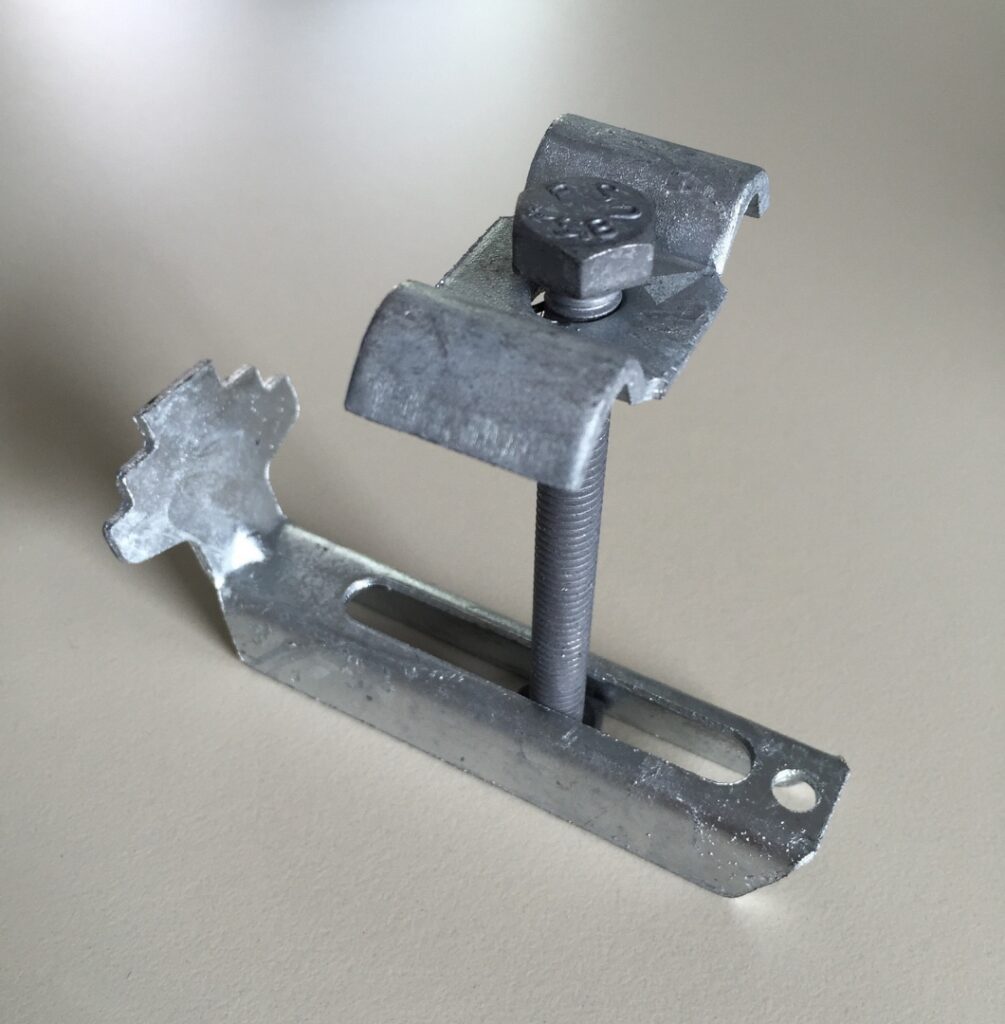

Grating Clip model BCGC-516Â is a galvanized carbon steel grating fastener used to fasten steel bar grating to structural shapes where the structural flange is in a horizontal plane. For appropriate use, the maximum measure from the top of the grating to the bottom of the flange is 2.5 inches. It can be used on 22-spaced grating and 30-spaced grating. It will work on 19-spaced grating, but note that the grating bars will spread during tightening.- G-Clip Model FSSGFÂ is a 316-stainless steel grating fastener used to fasten pultruded bar grating to fiberglass or coated steel structural shapes, where the structural flange is in a horizontal plane. The specially shaped top is designed to fit pultruded grating shapes, while restricting the spreading of the bearing bars.
Item/Type:  Grating clip / G Clip​
Material Grade:Â Mild Steel, Carbon Steel, Stainless Steel AISI 304/316
Finish: Mill, Hot Dip Galvanized, Painted, Polished
Fits Bar Grating Type: Welded, Press-locked, Swaged, Riveted (Carbon Steel, Stainless Steel & Aluminium)
Fits Bearing Bar Surface: Serrated & Non-Serrated(Smooth/Plain)
Fits Bearing Bar Spacing/C2C:Â Various
Fits Grating Thickness/Depth/Height:Â 1″, 1-1/4″, 1-1/2″, 1-3/4″ & 2″
Drilling:Â Not required
Includes:Â M8 Hex bolt of suitable length
Package quantity:Â 100 sets of G Clip
Recommended quantity: 1 G clip / 4 sq.feet of grating
